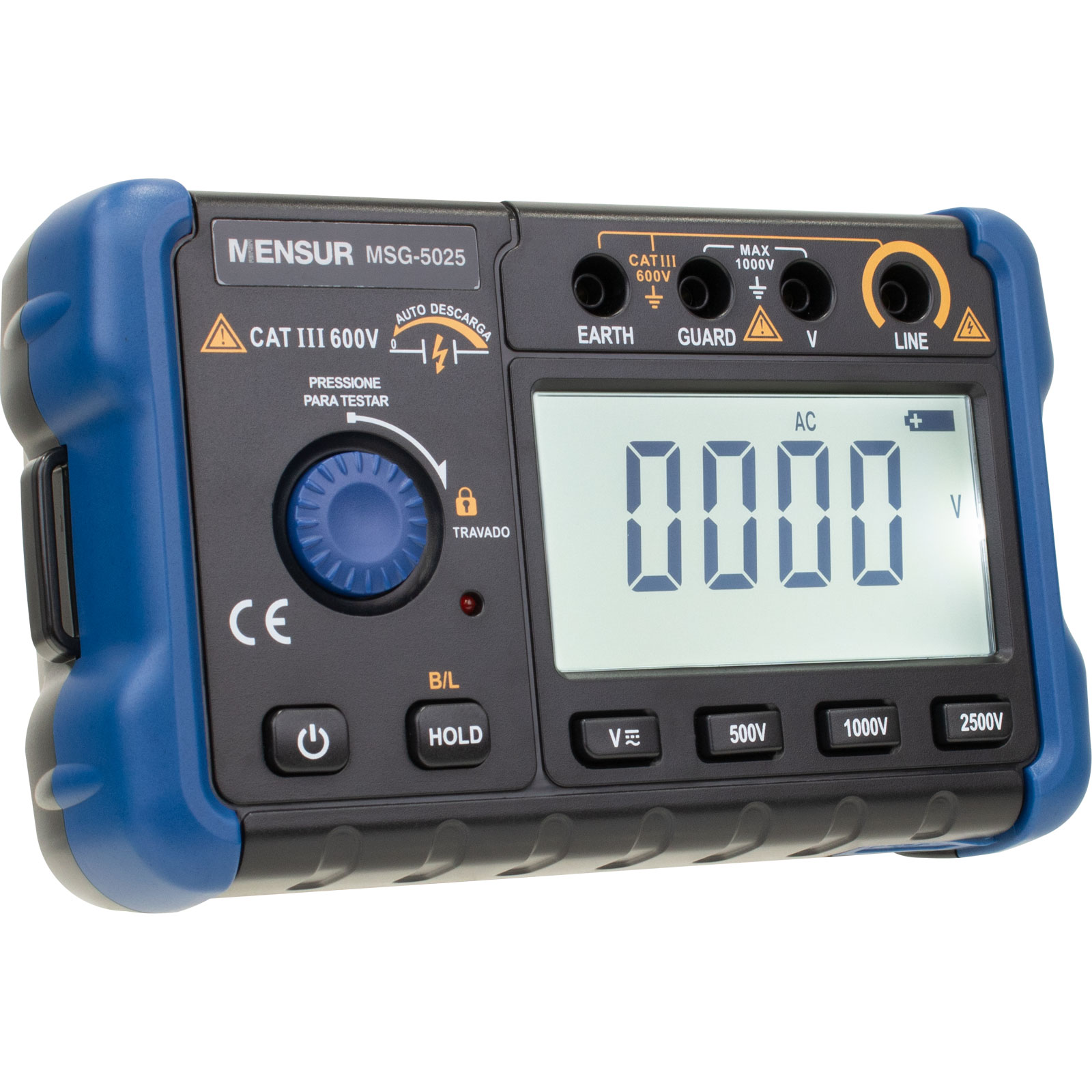

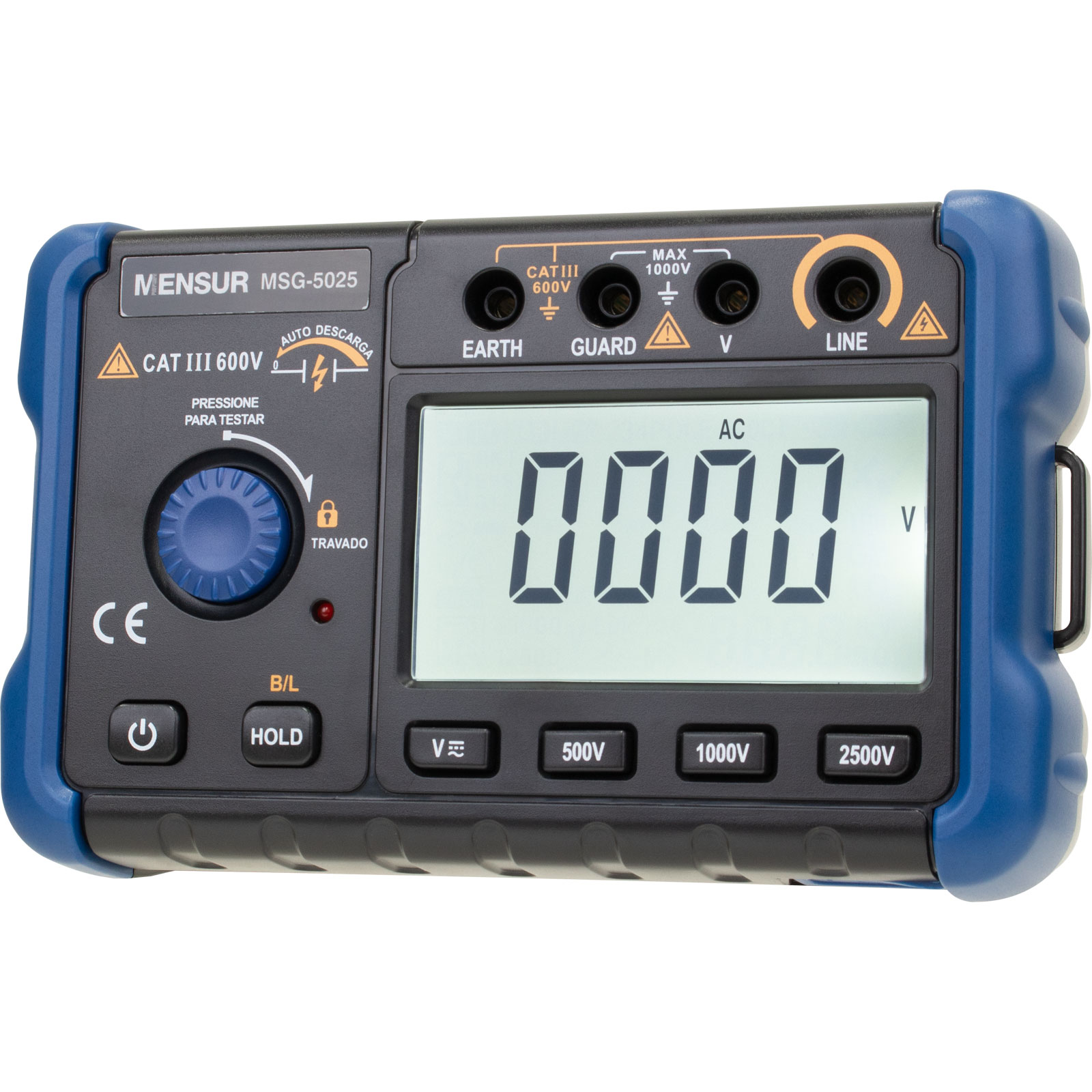

A megohmmeter, also known as an insulation tester or megger, is a measuring instrument used to verify the insulation resistance of electrical equipment such as cables, motors, and transformers. It applies a high voltage and measures the electrical resistance through the insulation, indicating the integrity of the insulation and allowing the identification of possible failures or deterioration of the insulating material.

What is a Megohmmeter?

A megohmmeter is a specialized type of ohmmeter that generates and applies a high voltage (typically between 100 to 10,000 volts) to a circuit or equipment to measure the insulation resistance. This measurement helps identify problems such as short circuits, current leakage, and other insulation defects that can cause malfunctions, electric shock hazards, and even fires.

How Does a Megohmmeter Work?

The megohmmeter applies a high voltage between two points of an electrical circuit or equipment. It then measures the current that flows through the insulating material between these points. A low insulation resistance indicates a problem with the insulation, such as deterioration, moisture, or a short circuit.

Types of Megohmmeters:

There are two main types of megohmmeters:

• Analog: Use a galvanometer to indicate the insulation resistance.

• Digital: Use a digital display to show the resistance value.

Applications of Megohmmeters:

Megohmmeters are widely used in various applications, including:

• Testing electrical motors: Verifies the integrity of winding insulation.

• Testing cables: Evaluates the condition of electrical cable insulation.

• Testing transformers: Ensures the safety and proper functioning of transformers.

• Testing electrical installations: Identifies insulation problems in electrical systems.

The use of a megohmmeter is crucial for:

Ensuring safety: Prevents electric shocks and other hazards associated with insulation failures.

Preventing damage: Helps identify problems before they cause greater damage to equipment.

Preventive maintenance: Allows for preventive maintenance of electrical equipment, extending its lifespan and preventing downtime.

Compliance with standards: It is often required by safety and quality standards.

Safety Precautions:

When using a megohmmeter, it is essential to follow the manufacturer’s instructions and safety standards, as it operates with high voltages that can be dangerous.

It is important to:

• Disconnect the power from the circuit before performing the test.

• Use personal protective equipment (PPE), such as insulating gloves.

• Ensure that the megohmmeter is in good working condition.

• Never touch the megohmmeter terminals or the circuit under test during high voltage application.

• Discharge the circuit after the test to prevent electric shocks.

Conclusion:

The megohmmeter is an essential instrument for the maintenance and safety of electrical systems. Its ability to measure insulation resistance allows for the identification of potential problems and ensures the proper functioning of equipment, preventing accidents and losses.
